E P Aeration works with engineering and design companies to provide wastewater treatment systems for municipalities, agricultural operations, aquaculture, and food processing facilities. Backed by a five year guarantee to be odorless, sludge-free and meet treatment requirements, our bottom laid, fine bubble aeration systems feature some of the highest Oxygen Transfer Efficiencies in the industry. Click here for a free quote or scroll down for more information.

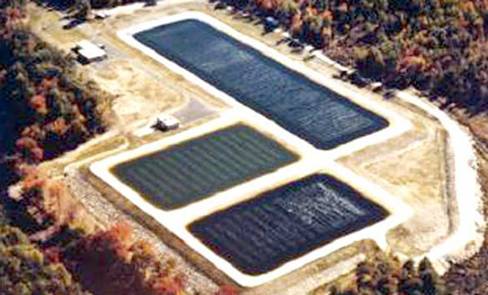

ADS Three Cell System





A three-cell wastewater treatment facility using proprietary ADS air diffusion tubing,  which E P Aeration utilizes in all its installations.

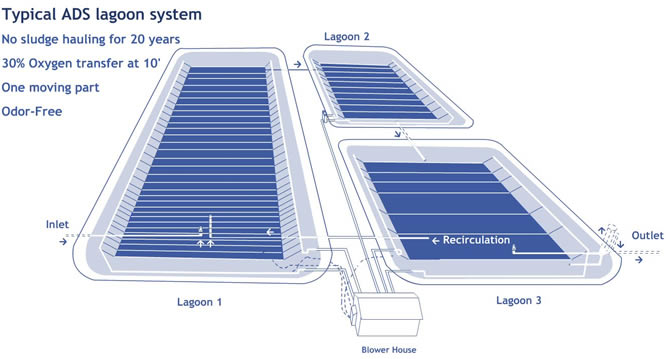

ADS-Three Cell System
ADS wastewater treatment is an aerated facultative lagoon system featuring bottom-laid, fine bubble aeration with tapered treatment. As waste enters the primary treatment cell (on the left) the diffuser tubing is spaced closely together in lines running perpendicular to the flow of wastewater. The condensed spacing provides high levels of mixing and oxygen transfer to meet the Biological Oxygen Demand (BOD). As the waste moves through the system, the tubing is space out more and more to allow settling of solids. The final cell can be covered, baffled, and or contain a bacterial growth media for enhanced treatment allowing us to achieve effluent water quality that was previously thought impossible with a lagoon system.

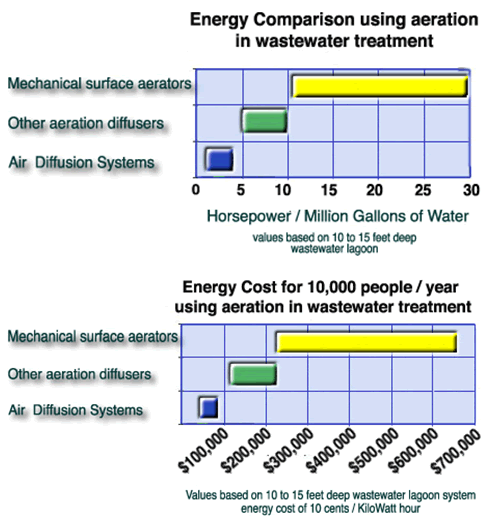

comparison chart wastewater
As the graph above indicates, significant energy savings can be realized by switching from a surface aerator to an ADS sub-surface, fine bubble aeration system. In fact, we can save you enough energy to qualify you for a rebate from your energy perveyor. Please click the link below to view our independently tested oxygen tranfer rates.
ADS O2 & BHP…. – Description: “Oxygen Transfer Rate testing”

Pacific, MO Wastewater
Tank Aeration
One of three lagoons at a large municipal wastewater treatment plant in Pacific, MO.
Stainless steel disk modules at work in an aerobic treatment cell for wastewater.
Gilster Marylee Wastewater
Eureka, MO Wastewater
300,000 gal/day food processing plant in Centralia, IL. Design requires 32 mg/L BOD effluent water quality.

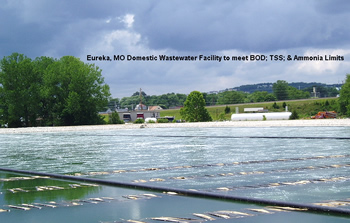

Eureka, MO domestic wastewater facility
processing 2.8 MGD to meet BOD/TSS/NH3 of 30/30/11



Wallace Group               Air Diffusion Systems

E P Aeration collaborates with prestigious civil engineering firms
like the Wallace Group and ADS on selected major wastewater treatment and reservoir projects.
